Unit: 1 piece(s)
List price (per unit ex VAT): £12.22PBT starting price (per unit ex VAT): £11.00
Your price per piece: £11.00

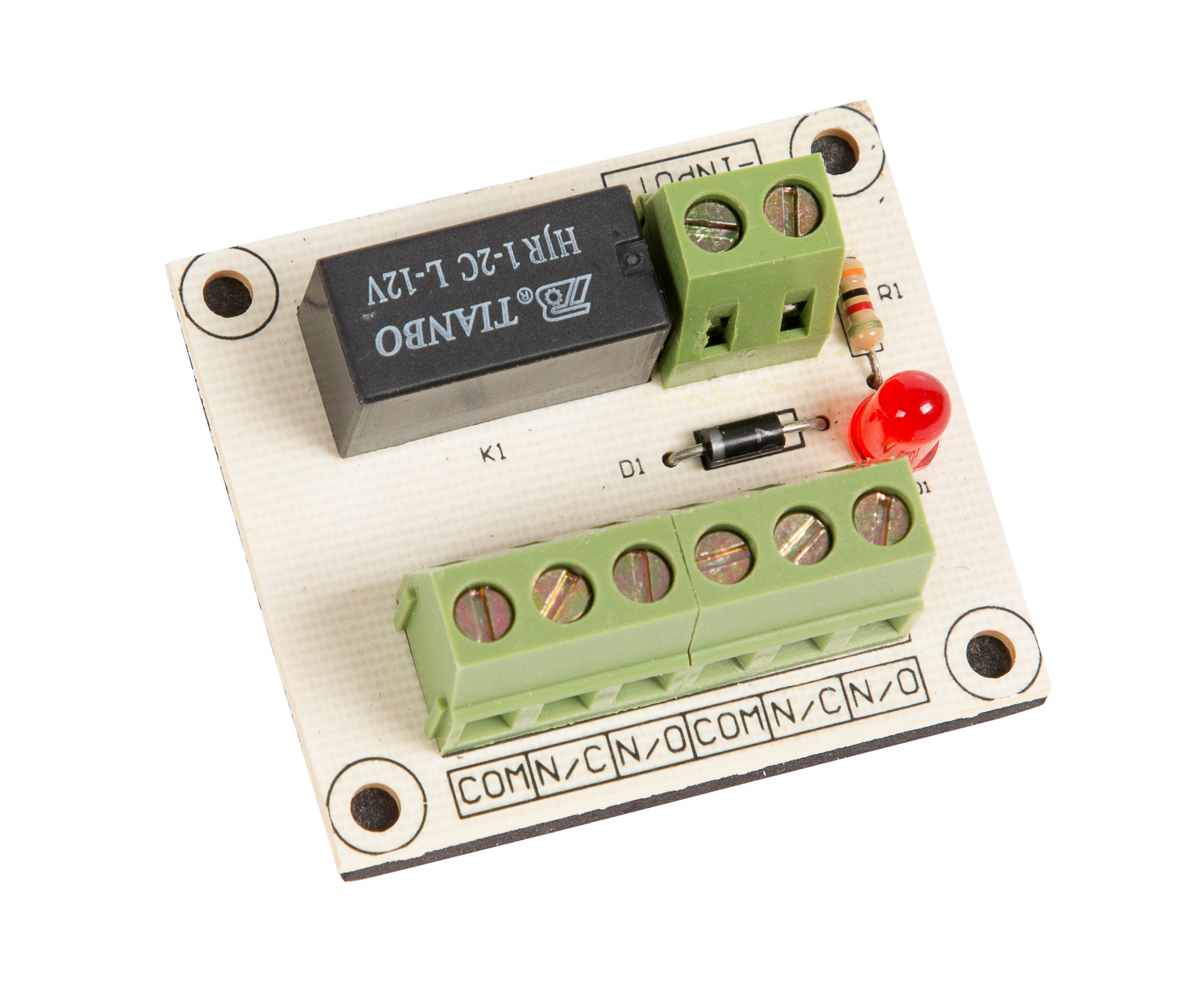

The ACCESS CONTROL Low Current Mini Switching Relay Board is a compact switching solution designed for access control applications. This 46 x 40mm board features a mini relay with low current input operation at 12VDC (9-20VDC range), drawing only 44mA. The board includes LED indication for status monitoring, dual COM-NO-NC outputs linked via common connection, and provides reliable switching with a contact rating of 5A at 250VAC or 30VDC. Its compact design and screw terminal connections make it ideal for integration into access control systems where space is limited.
| Packaging | Retail ready |
| Barcode | 5.05536E+12 |
| Commodity code | – |
| Country of Origin | – |
| Colour | Green, white and black |
| Finish | Matte plastic |
| Material | Various |
| Dimensions | 46mm x 40mm |
| Weight | unknown |
| Fixings included? | Yes |
| Fire rated? | – |
| Certification | unknown |
| Manufacturer guarantee | 10 years |
| Size | – |
| Data sheets |
